ST Series Shuttle valve
Body material aluminum alloy
Port Size G1/8”~G1”
Surface treatment hardcoat anodiz
|

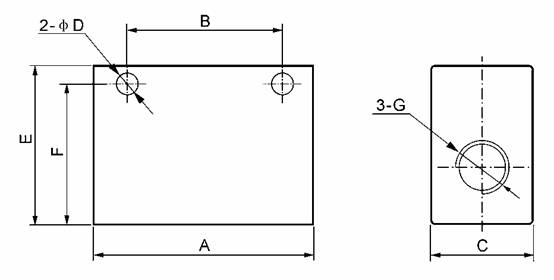

Model/Symbol |
A |
B |
C |
D |
E |
F |
G |
|
ST-01 |
40 |
24 |
16 |
4.5 |
25 |
20.5 |
G1/8” |
|
ST-02 |
50 |
35 |
22 |
5.5 |
35 |
25 |
G1/4” |
|
ST-03 |
75 |
48 |
30 |
7 |
50 |
42 |
G3/8” |
|
ST-04 |
75 |
48 |
30 |
7 |
50 |
42 |
G1/2” |
|
ST-06 |
110 |
72 |
40 |
7 |
70 |
58 |
G3/4” |
|
ST-08 |
110 |
72 |
40 |
7 |
70 |
58 |
G1” |
